How to Add Ranks in Pivot Tables in Excel

Last Updated: June 22, 2023

- Written by Puneet

By using a pivot table, you can summarize your data in an understandable manner. And, that summary can help you to analyze data on category wise, product wise, month wise, etc.

One of the common practices for analyzing data is by ranking them. Ranking categories and products can help you to compare them with each other.

The best part about ranking is you can check what is on the top and what is at the bottom. If we use ranking in a pivot table we can save a lot of time and effort and it will help us in our analysis.

So today, in this post, I’d like to show you 3 different methods to add a rank column in a pivot table.

NOTE: Pivot tables are one of the INTERMEDIATE EXCEL SKILLS and ranking in a pivot table is one of the advanced pivot table skills.

Add Pivot Table Rank in Excel 2010 and Above

  1. Add value field twice in the pivot table for which you want to measure the ranking.
    Add Ranks In Pivot Table In Excel 2010 & Above
  2. Select any of the cells from second data column and right click on it.
  3. Go to “Show Values As”. You have two different options to add ranking “Rank Smallest To Largest” or “Rank Largest To Smallest”, select any one you want to use.
    Add Ranks In Pivot Table in Excel
  4. It will convert the column values into ranks, and after that just sort your data to analyze the ranking.
    Add Ranks In Pivot Table in Excel

This is the easiest method to add ranking to a pivot table if you are using Excel 2010 or an earlier version.

While using this method, ranks will change when you filter the pivot table.

Add Pivot Table Rank in Excel 2007 and Below

  1. First, sort the data in ascending order on which you want to calculate the ranking.
    Add Ranks In Pivot Table in Excel

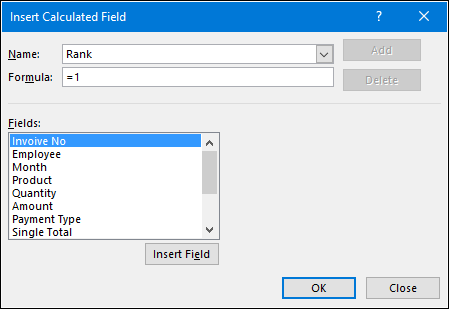

  2. After that, open the calculated field dialog box and enter “=1” in the formula input bar.
    Add Ranks In Pivot Table in Excel
  3. This will add a new field in your pivot with a value of 1 in all cells.
    Add Rank In Pivot Table Excel 2007 & 2010
  4. Next, select any of the cells in that field and right-click.
  5. Now, select the “Value Field” option, and in the value field setting dialog box, go to the “Show Values As” tab.
  6. From the drop-down list, select “Running Total In” and click OK.
    Add Rank In Pivot Table Excel 2007 & 2010
  7. Now, you have a column with rankings in your pivot table.
    Add Rank In Pivot Table Excel 2007 & 2010

Alert: Make sure that you have sorted your pivot table in ascending or descending order.

Using RANK.EQ and RANK.AVG in Source Data

This method is a little bit tricky, but it works like a charm. The benefit of using RANK.EQ and RANK.AVG is that you don’t have to add anything to your pivot table. Just follow these simple steps.

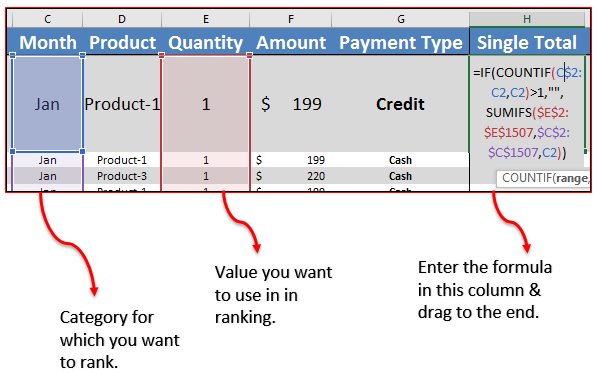

  1. First of all, in your raw data insert a new column and add this formula into the formula bar:
    • =IF(COUNTIF(C$2:C2,C2)>1,””,SUMIFS($E$2:$E$1507,$C$2:$C$1507,C2))
    • (Here’s how the formula works: This formula will add a single total for each category in the column. And, you can use that total to calculate the rank for each category).
    Add Rank Formulas In Raw Data To Add Rank In Pivot Table
  2. Now, add two more columns at the end of your data and add the below formulas in them.
    • =IF(H2=””,0,RANK.EQ(H2,$H$2:$H$1507,1))
    • =IF(H=””,0,RANK.AVG(H2,$H$2:$H$1507,1))
    • (Here’s how the formula works: RANK.EQ & RANK.AVG will calculate the ranking for the category in your data dump. We have used both of these functions to get different ranking types).
  3. After that, create a pivot table using this data dump, just like below. You can use any of both columns to calculate the ranking.
    Create Pivot Table To Add Rank In Pivot Table Create Pivot Table

Important: While using this method, the ranking will not change when you filter the items.

Add a Separate Rank Column in a Pivot Table

Instead of using formulas or any other method, you can also add a manual separate column for ranking. When you want to add ranks for an instance, you can use this method. Just follow these simple steps.

  1. Take a pivot table and sort the values in ascending or descending order as you like.
    Sort Data To Add Rank In Pivot Table Create Pivot Table
  2. And, in the next two columns outside the pivot table add the below formulas.
    • =RANK.EQ(E4,$E$4:$E$15,1)
    • =RANK.AVG(E4,$E$4:$E$15,1)
  3. Drag them below and you have the ranking along with the pivot table.
    Add Formulas To Add Rank In Pivot Table Create Pivot Table

Sample File


11 thoughts on “How to Add Ranks in Pivot Tables in Excel”

  1. Hi, great article.

    I have a problem with using rank in pivot table when there is a tie. In excel if you use the rank formula and if there is a tie in second place it would show, rank 1 2 2 4 5 6 etc. But in the pivot table rank, it shows rank 1 2 2 3 4 5. Is there a way to fix this? My raw data has too many criteria to try and use method 2. My pivots have filters which makes method 3 incredibly messy.

  2. Hi – Can we apply rank in pivot table on multiple criteria?
    If Yes, please share its detail or any other useful medium to perform it.

  3. Hi,
    This solution does not word with my specific problem:
    I have a Pivot with 5 different fields as rows, lets say A, B.C, D & E.
    When I want to show values as RANK, excel request to specify the Base Field, and although I tried with all them (from A to E), it does not work.

    Would you mind to explain how to do it when there are several fields in rows?


  4. Useful Article. I use the RANK function most often, but when I have to use Pivot tables, I use the ranking feature within Pivot table. While using Rank functions, I use in conjunction with COUNTIF to break ties. Best wishes.
